Details across the BDD electrode
all the basics about boron doped diamond (BDD) electrode are explained with specific information
Electrode Type
BDD Anode
Boron-doped diamond active surface for high-overpotential electrochemical oxidation duties.
Formats
Plate / Mesh / Tube / Disc
Core collection geometries plus rods, cassettes, custom assemblies, reactor packs, and OEM programs.
Active Area
Editable by model
Use product-specific effective area; do not substitute gross envelope size for active electrode area.
Substrate
Model-dependent
Confirm whether the specific item uses silicon, niobium, titanium-supported architecture, or another validated base.
Operating Mode
Batch / recirc / flow-through
Match geometry to residence time, turbulence, mass transfer, conductivity, and electrode gap.
Power Supply
DC controlled
Pair electrode pack with current-controlled supply, cabling, busbar, polarity, and protection logic.
Process Fit
AOP / polishing / pilot
Used for persistent organics, color, odor, COD polishing, brine treatment studies, and process validation.
Documentation
Datasheet + drawing
Publish SKU-specific dimensions, electrical limits, connector type, mounting, and service notes before sales launch.
Engineered for High-Intensity Electrochemical Performance
Boron-Doped Diamond Active Layer
Conductive diamond-film surface designed for strong anodic oxidation and demanding electrochemical environments.
High Oxygen Evolution Potential
Supports advanced oxidation reactions where strong oxidizing conditions are needed for difficult organic contaminants.
Excellent Chemical Resistance
Suitable for a wide range of wastewater matrices when operated within recommended process and cleaning conditions.
Multiple Substrate Options
Available on selected conductive substrates such as silicon, niobium, titanium, tantalum, or other project-specific bases depending on requirements.
Flexible Electrode Geometry

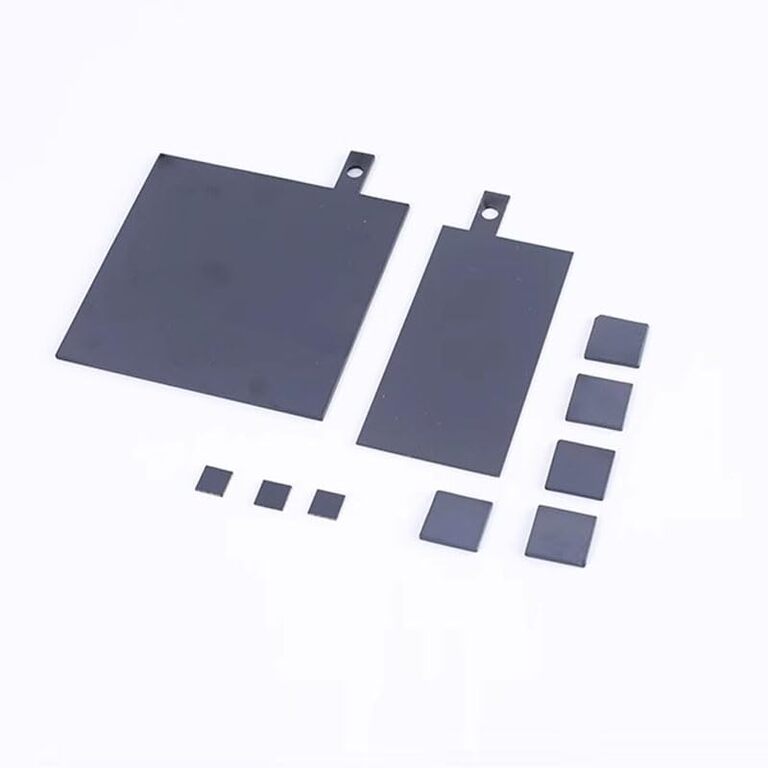

Supplied as plate, mesh, tubular, disc, wafer, rod, or custom machined format for direct reactor integration.
Stable Process Interface
Designed to support repeatable current distribution, controlled electrode spacing, and reliable contact connection.
Pilot-to-Industrial Scalability
Suitable for bench testing, pilot demonstrations, and modular scale-up when reactor conditions are properly designed.
Strong Pollutant Degradation Potential
Applicable to treatment processes targeting color, odor, organic residues, micropollutants, and refractory COD fractions.
Custom Terminal Design
Electrical contacts, bus bars, threaded terminals, welded tabs, and sealing details can be adapted to equipment drawings.
BDD Electrodes Manufacturer
BDD Electrode Plate: Boron-Doped Diamond Anodes for Industrial Electro-Oxidation
Boron-doped diamond (BDD) plates are the non-active anode of choice when an electro-oxidation process has to mineralize refractory organics, pharmaceutical residues or perfluorinated compounds rather than rely on chlorine. We cut the substrate, grow the diamond film and test every production batch at our own facility in Yixing, Jiangsu, and we build the plates into our own trial, bench and pilot modules.
- Substrates: [enter: Nb / Si]
- Diamond film: [enter: µm] by [enter: HFCVD / MPCVD]
- Plate sizes up to 500 × 500 mm; custom sizes and perforation
- Manufactured and tested in-house, Yixing, Jiangsu, China
[enter: photo — BDD plate, front view, on a neutral background]
[enter: photo — edge close-up showing film and substrate]
[enter: image — Raman spectrum or SEM cross-section from a production batch]
Specifications
BDD electrode plate specifications
| Parameter | Value | Basis / how it is measured |
|---|---|---|
| Substrate | [enter: Nb / Ti / Ta / Si — list the substrates you offer] | Grade and purity, e.g. ASTM B393 (niobium) or ASTM B265 (titanium) |
| Substrate thickness | [enter: mm, ± tolerance] | Nominal thickness before coating |
| Standard plate sizes | [enter: L × W in mm, list each standard size] | Outer dimensions including uncoated margin |
| Maximum plate size | [enter: L × W in mm] | Set by the CVD reactor chamber |
| Geometric active area | [enter: cm² per standard plate] | Coated area only; state whether one or both faces count |
| Coated faces | [enter: single-sided / double-sided] | — |
| Plate form | [enter: solid / perforated / mesh; hole size and open area %] | — |
| Diamond film thickness | [enter: µm, ± tolerance] | Cross-section SEM or mass gain; state which |
| Deposition method | [enter: hot-filament CVD / microwave-plasma CVD] | — |
| Boron doping level | [enter: B/C ratio in feed gas (ppm) or carrier concentration (cm⁻³)] | State which basis is reported |
| Film resistivity | [enter: Ω·cm] | Four-point probe |
| Diamond quality | [enter: Raman diamond-line position and FWHM; sp² band present or absent] | Raman spectroscopy, diamond line at 1332 cm⁻¹ |
| Electrical connection | [enter: tab or stud material, size, thread] | — |
| Country of manufacture | China. Cut, coated and tested at our own facility in Yixing, Jiangsu. | — |
Operating window
| Parameter | Value | Basis / how it is measured |
|---|---|---|
| Oxygen evolution potential | [enter: V vs SHE (or vs Ag/AgCl) at __ mA/cm² in __ M H₂SO₄] | Linear sweep voltammetry; state reference electrode and electrolyte |
| Water stability window | [enter: V] | Cyclic voltammetry; state scan rate and electrolyte |
| Rated current density, continuous | [enter: mA/cm²] | Design value for warranty |
| Maximum current density, short-term | [enter: mA/cm²] | State the allowed duration |
| pH range | [enter: min – max] | — |
| Maximum temperature | [enter: °C] | — |
| Chloride | [enter: maximum mg/L; note on chlorate/perchlorate formation] | In chloride water a BDD anode also forms chlorate and perchlorate |
| Polarity reversal | [enter: permitted or not; maximum reversal frequency] | Substrate-dependent; affects warranty |
| Use as cathode | [enter: yes / no; conditions] | — |
Service life and warranty
| Parameter | Value | Basis / how it is measured |
|---|---|---|
| Accelerated life test | [enter: hours to failure at __ A/cm² in __ M H₂SO₄ at __ °C; failure criterion, e.g. a cell-voltage rise of __ V] | Per production batch or per qualification lot: state which |
| Rated life in service | [enter: kAh/m² at __ mA/cm², __ mg/L Cl⁻, __ °C] | Life is charge per area at stated conditions, not hours alone |
| Warranty | [enter: months or kAh/m², and the conditions it requires] | — |
The usual failure modes of a BDD plate are film delamination at the substrate interface, attack of the substrate through pinholes, and mechanical damage from handling. Polarity reversal speeds up delamination on some substrates. We state life as charge per area at stated conditions so it can be compared between suppliers.
Manufacturing and quality control
Made in our own factory, workshop and lab
Every plate is produced in-house at [enter: facility name], Building 10, Yixing International Environmental Protection City, Gaocheng Town, Yixing, Jiangsu, China. Factory visits and audits can be arranged.
- Substrate cutting and machining
- Surface preparation: [enter: e.g. sandblasting and acid etching]
- Diamond seeding: [enter: method]
- CVD deposition in [enter: number] reactors
- Inspection and testing (table)
- Cleaning, labelling and packing
| Test | Frequency |
|---|---|
| Visual and dimensional inspection | [enter: every plate / per batch] |
| Film thickness | [enter: every plate / per batch sample] |
| Raman spectrum | [enter: per batch sample] |
| Film resistivity | [enter: per batch sample] |
| Adhesion test | [enter: method, e.g. thermal-cycling or scratch test] |
| Accelerated life test | [enter: per batch sample / per qualification lot] |
[enter: link to a redacted sample inspection report (PDF)]
[enter: photo — CVD reactor hall]
[enter: photo — substrate preparation line]
[enter: photo — QC lab: Raman, SEM or four-point probe]
[enter: photo — packed plates ready to ship]
— Selection Architecture Matrix
Get the right electrode geometry for your application
This matrix is the intelligence layer that separates a high-performing BDD category page from a simple product grid. It tells engineers where to start and which variables must be checked before quotation.
| Buyer Problem | Best Starting Product | Why It Fits | Engineering Check |
|---|---|---|---|
| Flat reactor stack or compact flow cell | BDD Plate Electrode | Simple sealing, repeatable gap, scalable active area. | Plate size, gasket path, compression, current distribution. |
| Higher contact in constrained hydraulic channel | BDD Mesh Electrode | Open area can support turbulence and flow-through contact. | Pressure drop, clogging risk, particle load, support frame. |
| Pipe reactor or annular cell | BDD Tubular Electrode | Natural fit for cylindrical housings and recirculation loops. | Diameter, length, annular gap, seal, connector location. |
| Treatability study or lab method screening | BDD Disk / Lab Kit | Controlled small area and easier bench testing. | Cell volume, stirring, reference electrode, current limit. |
| OEM replacement or repeated production | Cassette / OEM Program | Controlled drawings and repeatable service format. | Batch traceability, QA acceptance, packaging, lead time. |
— Reactor Architecture Matrix
Map BDD products to cell architecture, not just shape
Visitors often know their reactor concept before they know the correct electrode format. This section keeps the page grounded in cell architecture: plate stack, annular tube, open channel, bench cell, or OEM cartridge.
| Architecture | Typical BDD Form | Hydraulic Pattern | Collection Page CTA |
|---|---|---|---|
| Parallel plate stack | Plate electrode / reactor pack | Serpentine or straight-channel flow | Ask for active area and gasket drawing. |
| Annular pipe cell | Tubular BDD electrode | Axial flow through annular gap | Ask for tube diameter, length, and seal type. |
| Open-channel frame | Mesh or plate cassette | Flow-through / cross-flow | Ask for suspended solids and cleaning access. |
| Batch beaker / lab cell | Disc, rod, lab kit | Stirred batch or recirculated bench loop | Ask for volume, electrolyte, and test protocol. |
| OEM cartridge | Cassette / replacement set | Predefined cell channel | Ask for drawing control and lifecycle forecast. |
— Technical Specification Table
Category-level specifications built for engineering review
Unlike a single product datasheet, a category page should clarify what is common to the family and what must be confirmed per SKU. This table is intentionally explicit about placeholders.
| Category | Boron-doped diamond electrode products | Primary role | High-overpotential anode for electrochemical oxidation |
| Available forms | Plate, mesh, tube, disc, rod, cassette, stack pack, custom assembly | Active area | Set per SKU or project drawing |
| Electrical input | DC current-controlled power supply required | Connections | Lead, lug, busbar, threaded, clamped, or OEM-specified interface |
| Hydraulic mode | Batch, recirculation, flow-through, annular, cassette, or stack cell | Media compatibility | Confirm electrolyte, conductivity, pH, temperature, organics, solids, chloride, and scaling tendency |
| Procurement files | Datasheet, dimensional drawing, application questionnaire, QA record, packaging note | Page status | Values are placeholders pending final SKU data |
— Operating Envelope
Define the safe inquiry window before final electrode selection
This section should remain conservative. Use it to route buyers toward engineering review instead of publishing unsupported current-density, lifetime, or chemical-compatibility claims across the entire category.
Current Density
Publish only model-validated ranges. For early files, state that final current density depends on active area, electrolyte conductivity, reactor design, cooling, and target reaction.
Electrolyte Conductivity
BDD electrodes require a complete electrical circuit through the liquid phase. Conductivity, supporting electrolyte, feed variability, and voltage ceiling should be reviewed before sizing.
pH and Temperature
Use product-specific limits. Category pages should request operating pH, temperature, cleaning chemicals, and excursion conditions before quotation.
Scaling and Fouling
Hardness, silica, suspended solids, oils, biomass, iron, manganese, and precipitating salts can alter performance and cleaning intervals.
Chloride and Byproducts
Ask for chloride, bromide, ammonia, COD, TOC, alkalinity, and discharge objectives where oxidation byproducts or active chlorine formation may matter.
Service Life
Do not use a blanket lifetime claim for all BDD products. Tie service-life language to duty cycle, current density, chemistry, temperature, and validated application history.
— Engineering Notes
BDD electrode performance is a system outcome, not a standalone material promise.
Final performance of BDD electrode in real world performances are depends on electrode area, current distribution, electrolyte composition, mass transfer, residence time, oxidation pathway, temperature control, scale prevention, cleaning protocol, and downstream treatment objectives.
Do confirm
- Active electrode area
- Electrode gap
- Current and voltage limit
- Substrate and coating architecture
- Lead and busbar design
- Seal and gasket compatibility
- Cleaning method
- Packaging and QA requirements
Do not assume
- One chemistry fits all waters
- One lifetime fits all duties
- Gross size equals active area
- Lab data scales directly to plant flow
- Electrode only fixes mass-transfer limits
- Chloride has no byproduct implications
- Cleaning interval is universal
— Application Map
Where the Engineering Services Be Placed On BDD electrode
Our engineering and design services toward boron doped diamond (BDD) electrode encompassing electrode plate drawing, catalyst coating enhancements, quality control, treatability testing, pilot data testing, analysis, and validation,as well as performances of these non-active electrode in electrochemical reactors and electrochemical oxidation wastewater treatment system at different scales.
Drawing control
For replacement sets and OEM programs, publish revision-controlled drawings and lock the connection geometry before production quotation.
QA record
Use this block for inspection, coating verification, dimensional checks, packaging records, and batch traceability language.
Application validation
Wastewater outcomes should be tied to treatability testing, pilot data, analytical methods, and defined influent/effluent criteria.
Service planning
Make cleaning, inspection, replacement, gasket handling, and connection checks visible before purchase to reduce support friction.
Where BDD electrode fits
Where BDD plates fit
- Refractory COD that biology cannot remove
- Pharmaceutical API residues and antibiotics
- PFAS destruction in RO and NF concentrates
- Landfill leachate polishing
- Electro-oxidation research and treatability testing
Limits
Where another anode is the better choice
- Chlorine-mediated duties. For disinfection or ammonia removal through active chlorine, an MMO anode does the job at lower cost.
- High chloride with strict byproduct limits. BDD forms chlorate and perchlorate in chloride water; the process needs controls or a different route.
- Biodegradable or very dilute streams. Biology, adsorption or ozone usually cost less per kilogram removed.
Compare the options in BDD vs iridium oxide electrodes and the electrode materials overview.
— Application ranges
Where the BDD electrode belongs in the implement aspects
Explore one of the major application ranges of BDD electrode in the real world now, that is treatment of complex industrial effluents via the electrochemical oxidation wastewater treatment, that is to remove refractory pollutants and compliant with regulations, treat those waste streams considered challenging to conventional treatment methods.
01 / Application
Use BDD electrode product to route wastewater projects toward active-area review, treatability testing, energy consumptions, and byproduct assessment.
02 / Application
Landfill Leachate Trials
Position BDD products for difficult matrices where pilot data, chloride, ammonium, COD, conductivity, and scaling must be reviewed.
03 / Application
Frame the category around recalcitrant compounds, validation work, and careful process-data intake rather than one-size-fits-all claims.
04 / Application
Route academic and R&D visitors toward disc, rod, and lab-kit formats with clear bench-cell documentation.
05 / Application
Give equipment builders a clear path for cassettes, electrochemical reactor packs, replacement sets, and recurring drawing-controlled electrode programs.
06 / Application
Connect electro oxidation pilot module inquiries to flow, power, residence time, sampling plan, and operational data capture.
— applications BESIDES WASTEWATER TERATMENT
Established commercial, research and emerging applications of BDD electrode
Explore implement ranges of BDD electrode besides electrochemical oxidation wastewater treatment, that is commercial, residential, research and developing one.
07 / Application
Water disinfection
Run current through water across a BDD anode and you get in-situ ozone generation, That makes it attractive anywhere disinfection needs to happen without a chemical supply chain behind it: food-contact surface sanitizing, home and commercial appliances, pool or spa.
08 / Application
Electrochemical sensors & analysis
BDD’s sensitivity and stability support detection of heavy metals, organic pollutants, and pharmaceutical compounds — an active area of environmental monitoring and medical diagnostics research.
09 / Application
Electrochemical synthesis
BDD’s unique reactivity, cleaner conversion profile, and wide electrochemical potential window show promise for electrosynthetic applications.
10 / Application
Electrochemical hydrogen production
BDD’s water-splitting efficiency holds promise for hydrogen production as a clean energy source — an active area of sustainable energy research.
11 / Application
Neurotransmitter detection
BDD electrodes have shown promise in neuroscience research for detecting neurotransmitters, with potential therapeutic relevance for neurological disorders still being established through ongoing research.
12 / Application
Soil & groundwater remediation
Emerging research points to BDD’s potential in remediating soil and groundwater contaminated with refractory organic pollutants — a natural adjacent application to our core wastewater treatment work.
— Application Hearing / Intake
Make the category page qualify the inquiry before sales touches it.
This is the hearing section for the BDD electrode subcategory. It gives engineering, procurement, and OEM buyers a complete checklist.
| 1. Electrode target | Desired form, active area, dimensions, quantity, mounting, connection, substrate preference, and whether it is a replacement, prototype, or new reactor design. |
| 2. Process liquid | pH, temperature, conductivity, chloride, bromide, COD, TOC, ammonia, hardness, suspended solids, oil/grease, and known oxidant sensitivity. |
| 3. Cell architecture | Batch, recirculation, parallel plate, annular tube, cassette, stack, OEM housing, flow rate, pressure, electrode gap, gasket material, and cleaning access. |
| 4. Electrical limits | Power supply type, maximum current, voltage ceiling, duty cycle, polarity reversal strategy, cable route, busbar, insulation, and control interlocks. |
| 5. Decision output | Recommended product family, required drawing review, test protocol, quotation scope, lead time, documentation set, and any application-validation requirements. |
Drawing control
For replacement sets and OEM programs, publish revision-controlled drawings and lock the connection geometry before production quotation.
QA record
Use this block for inspection, coating verification, dimensional checks, packaging records, and batch traceability language.
Application validation
Wastewater outcomes should be tied to treatability testing, pilot data, analytical methods, and defined influent/effluent criteria.
Service planning
Make cleaning, inspection, replacement, gasket handling, and connection checks visible before purchase to reduce support friction.
Ordering
Customization, lead time and ordering
| Parameter | Value | Basis / how it is measured |
|---|---|---|
| Custom sizes and shapes | [enter: range you can produce] | — |
| Perforation and mesh | [enter: options] | — |
| Minimum order | [enter: plates or m²] | — |
| Lead time | [enter: weeks for standard / weeks for custom] | From order confirmation |
| Samples and test plates | [enter: policy and cost] | — |
| Packaging | [enter: e.g. individual foam-lined cases] | — |
| Shipping terms | [enter: Incoterms offered, e.g. EXW Yixing, FOB Shanghai] | — |
| Quality certification | [enter: e.g. ISO 9001 certificate number and issuing body, if held] | Link a scan of the certificate |
Need a complete reactor rather than plates? We build our electrodes into trial modules, bench modules and pilot modules.
— Resources / Downloads
Available Files
Fetch model-specific files such as product brochure, drawing checklist, as well as treatability form drafted by Evoaeo engineering team.
Product Brochure
Collection overview, electrode formats, application map, selection logic, and inquiry pathway.
Drawing Checklist
Dimensions, active area, tolerance, mounting, connection, gasket zone, and revision fields.
Treatability Form
Water chemistry, flow, target contaminants, power limits, test protocol, and analytical endpoints.
Common Questions About BDD Electrodes
BDD electrodes are used in electrochemical oxidation, advanced water treatment, electrochemical research, disinfection support, pollutant degradation, and specialty industrial processes requiring strong anodic oxidation.
BDD and MMO serve different process needs. BDD is often selected for high-intensity oxidation and refractory pollutant degradation, while MMO is commonly selected for large-area industrial electrolysis, chlorine generation, and cost-sensitive electro oxidation systems.
BDD is a non-active anode with a high oxygen-evolution potential. It produces hydroxyl radicals that oxidize organics directly, including perfluorinated compounds an MMO anode cannot mineralize. MMO is an active anode that works mainly through chlorine; it costs less and suits disinfection and chloride-mediated ammonia removal. See BDD vs iridium oxide electrodes.
Yes. BDD electrodes can be customized by active area, thickness, substrate, terminal style, shape, and mounting interface according to project drawings.
Useful data includes wastewater type, COD/TOC, conductivity, chloride level, pH, temperature, flow rate, current density target, voltage limit, reactor dimensions, and treatment goal.
Yes. BDD electrodes can be designed for batch cells, flow-through reactors, modular stacks, and pilot systems when the mechanical and electrical design is properly matched.
Maintenance depends on wastewater and reactor design. General practice includes monitoring voltage trends, avoiding mechanical damage to the active surface, cleaning according to fouling type, and checking electrical connections regularly.
Niobium is the usual substrate for industrial BDD electrode plates: it bonds well to the diamond film through a carbide interlayer and passivates if electrolyte reaches it through a pinhole. Tantalum behaves similarly at higher cost. Silicon gives very uniform films but is brittle and limited in size, so it needs mechanical support. Titanium is the lowest-cost option, but adhesion and service life are harder to achieve. Currently Evoaeo manufacture and supply boron doped diamond (BDD) electrode on Silicon Substrate (Si) as well as diamond electrode on niobium (Nb- BDD Electrode).
Given the differences of these two substrates, you can choose silicon BDD electrode for laboratory testing, or serving research and development purposes to spotting the basic electrochemical degradation essential researches, or you are trying to build micro electroanalytical sensors that requires lower capacitive background currents, what is more, silicon substrates are ideal if you are trying to develop an electro oxidation system handling wastewater at small scale, low throughput/volumes with limited budget. While Nb BDD electrode will be the right choice to function as the anode for an electro oxidation system to treat larger industrial effluents from industrial plants such as pharmaceuticals waste streams, chemical factory effluents, etc, as well as tertiary treatment and polishing to be placed after reverse osmosis, MVR concentrates, MBR or activated sludge, ion exchange regeneration, chemical precipitation, electrocoagulation
Yes. We build our own elecrode plates into electro oxidation trial, bench and pilot modules, and we size them from a treatability test on your water.
— Before you go
Build the BDD electrode quote around geometry, chemistry, and reactor architecture.
Send the drawing, liquid analysis, operating target, and electrical constraints. The response can then be structured around electrode family, active area, connection method, compatibility checks, documentation, and lead-time assumptions.
| Best next step | Pick the electrode form, then submit active area, dimensions, process liquid, reactor architecture, and electrical limits. |
| Engineering output | Recommended product family, drawing review notes, documentation requirements, pilot/testing recommendation, and quotation scope. |
| Page conversion goal | Move visitors from generic BDD interest to specific electrode geometry and application-ready inquiry. |
