Advanced Oxidation Water Treatment System EOPM175

Introducing Advanced Oxidation Water Treatment System EQ175S

Integrated Electrochemical Advanced Oxidation Treatment for Industrial Effluents

Electrochemical wastewater treatment is a new approach to treat industrial effluents, advanced oxidation water treatment system EQ172S is designed for highly concentrated, high salinity, highly toxic, industrial effluents.                                                                                        EQ175S generates powerful oxidizing agents such as hyroxyl radicals, hydrogen peroxide, Ozone and weaker oxidants in bulk, near the surface of boron doped diamond BDD electrode. As we mentioned within content about properties and advantages of boron doped diamond electrode, large potential window massively increase the hydrogen and oxygen evolutions, which eventually enhance the efficiency of electrochemical generation of various oxidizing agents, these oxidizing agents have much higher oxidation reduction pontentials than regular oxidizing agents, given their non-selective oxidative nature, hydroxyl radical and hydrogen peroxide can mineralize refractory organic pollutants found in industrial wastewater.

Key Features & Benefits of Advanced Oxidation Water Treatment System EQ175S

Boromond designed and developed this electrochemical oxidation water treatment system based on deep understanding of electrolyer fabrication and configurations, wastewater collection, electrode material selection, circluations, integration, operational parameters, electrolyte compositions, electrolytic treatment and so on.                                                                                                                      This electro-oxidation equipment demonstrates high removal efficiency toward bio-recalcitrant organic compounds and leave way less residual than conventional treatment methods, the modular design make sure it’s easy to relocate and expand, and what is more, it becomes highly automate with the HMI and PLCs installed into the system, the treatment processes does not require additions of extra chemicals, which could reduce the procedure therefore simplified the operations.

Unmatched Organic Pollutats Removal Efficiency

The electro-oxidation water treatment system EQ175S employs several modular electrolyzers ME21424, with a sealed active area up to 16800 cm2, at the core part of EQ175S, there are 4 sets of electrode assemblies, each electrode assembly consisting 7 pieces of boron doped diamond electrodes and 8 pieces of titanium electrodes.                                                                                                  With a sealed active area up to 16800 cm2, our robust wastewater water treatment system become an electrochemical reactor, which offer extremely high oxidizing agents concentration which mineralize recalcitrant organic compounds then achieve efficient water remediation. EQ175S emits a bio-refractory organic compounds removal up to 99%, and a 75-100% removal rate toward total nitrogen, cyanogen, colorization and phosphorusremove, according to previous onsite treatability test and projects.

Ease of Use, Turnkey Operation, Low initial investment

The EQ175S combines HMI/PLCs, modular electrolyzers and supporting components such as sinks, pumps, circulation tanks, pressure switchs, meters, filters, pipes, flow control valves as a turnkey solution, which offers complete functionality within a simplified, standalone wastewater treatment system.
Costs are one of the most immortant frameworks for field application of electro-oxidation system in wastewater treatment industry, direct operation and less equipment required means a much lower initial investment, and what is more, there will be a much less installation cost as there is no need to connect external circulation barrel, sinks, filters and so on. User-friendly operation enhances efficiency and convenience.

High Flow Rate

The electro-oxidation water treatment system employs unique pumping system to reduce residence time without foaming or sludge, which make it low maintanence, with high flow rate and no downtime. Therefore EQ175S is ready to be installed and operate in existing treatment facility or manufacturing sites to handle huge amount of effluents.

Customization Options

In most cases, industrial effluents from different sectors are different when it comes to types and amounts of organic pollutants, therefore there is no standardized water treatment system will tackle all the challenges all of our customers encounted. Water treatment system customization could be invidually designed to handle specfic requirements to fit various types of applications to address certis issues, based on the exact water profile we assessed.
With compatibility and treatment efficiency in mind, our engineering team will design tailor-made modular and scalable electrochemical water treatment solutions that can handle specific water quality issues from different origins, to tackle the challenges of different industrial effluents.

Key Characteristics of Advanced Oxidation Water Treatment System EQ175S

Advanced Oxidation Water Treatment System EQ175S Structures

We have developed expertise in the material selection, design and development, and application of electrochemical oxidation wastewatrer treatment equipment and integrated advanced electrochemical oxidation wastewater treatment system using boron doped diamond electrode. EQ175S consists of moudular electrolyzer reactors which houses BDD electrode assemblies, and a sustainable approach that allows an efficient pilot scale but constant simplified operation.

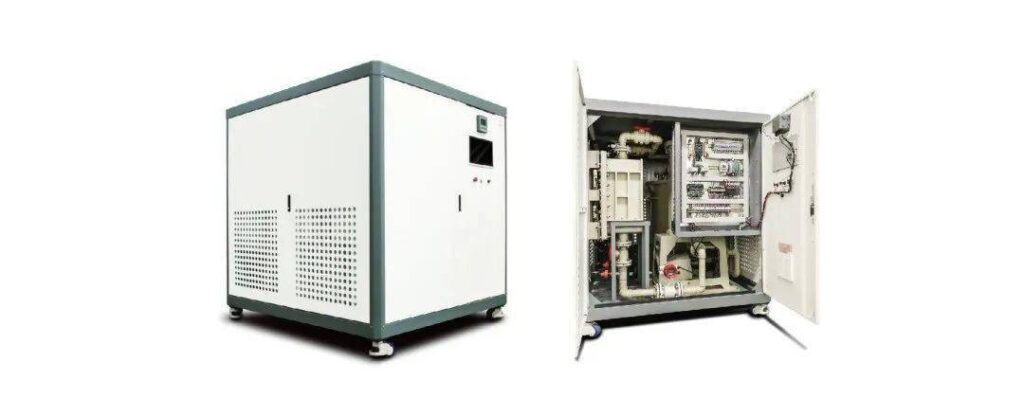

advanced oxidation water treatment system EQ175S combo
Comonents of Water Treatment System EQ175S

Advanced oxidation water treatment system EQ175S is designed to realize continuous operating and onsite wastewater organic wastewater treatment at pilot scale, it requires small space therefore it could fit into existing treatment facilities.
EQ175S is made of PLC/HMI interface, filters, flow control valves, measuring meters, circulation tanks, two sets of advanced electro oxidation modular electrolyzer ME21424, piping system, pumps, chemically insert PTFE shell, metal contact parts and accessories.

advanced oxidation water treatment system EQ175S

Advanced Oxidation Water Treatment System EQ175S Specifications

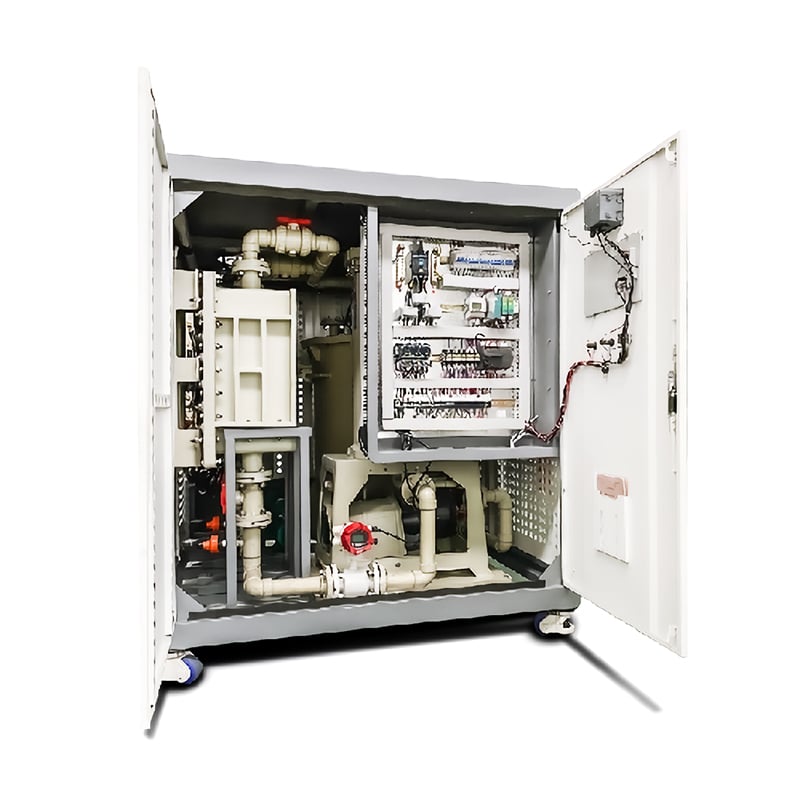

advanced oxidation water treatment system EQ175S closer view

Electrode Assembly:                                                                          Anode: Boron doped diamond BDD Electrode (Silicon Substrate)    Dimension: 240*130*3 mm                                                                      Quantity: 28 pieces                                                                                        Cathode: Titanium Electrode                                                            Dimension: 324*150*1.5 mm                                                                      Quantity: 32 pieces                                                                                        Sealed Active Area: 16800 cm2                                                        Designed Circular Flow: 20 m3/h                                                      Input Voltage: AC 380V/50Hz                                                                Power Output: DC 1000A/20V                                                                Current Density: 55-100 mA/cm2                                                      Circulation Tank Volume: 0.23 m3                                                          Usage Protection: Over Heat/Pressure;High/Low Liquid Level            Cooling Capacity: 9 Kw                                                                                Air Output ≥1200 m2/h                                                                                Overall Dimension: 2000*1800*2000 mm                                                Net Weight: 2000 kg

Explore More Information About Advanced Oxidation Water Treatment System

Find Out How Water Treatment System EQ175S Handle Pilot Scale Industrial Wastewater Treatment

Boron doped diamond electrode function as anode material within the electrode assembly, core component of water treatment system EQ175S, to conduct electrolytic water treatment to remove recalcitrant organic compounds in industrial effluents.

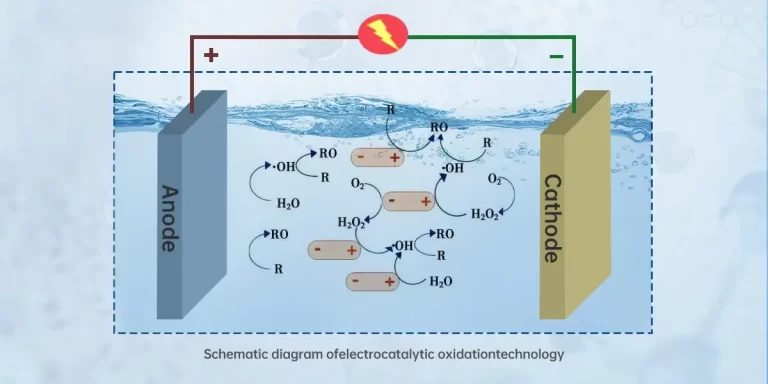

Schematic diagram ofelectrocatalytic oxidationtechnology

Explore More Details About The Mechanism of Wastewater Electrolysis And Electrochemical Oxidation Treatment

Still struggling with complex industrial wastewater treatment?

We employed advanced electro oxidation treatment technology for electrochemical treatment of industrial wastewater with recalcitrant organic compounds, especially those are hard to biodegrade, highly toxic, high salt, and high conenctration, previous experiments and projects emits great results with industrial effluents from various industries and sectors such as pharmaceutical, pesticide, special chemical manufacturing, petrochemical, printing and dyeing, paper and pulp, lithium-ion battery production and recycling and etc.

Difficult to biodegrade

Low B/C ratio. DMF, Mercaptothiazoline etc..

High Toxicity

Cyanide, Pyridine and Pyrimidine analogues etc.

High Salinity

A large number of Na+, Ca2+ and other dissolved inorganic salts

High Concentration

High pollutant content, high chemical oxygen demand (COD)

Water Treatment System EQ175S Treatment Results And Innovative Industrial Wastewater Treatment Solutions

Designed to provide more options to the water treatment industry, the electro-oxidation equipment is a pilot electrochemical integrated treatment equipmentor based on years of testing and improvement over the bdd electrode, electro-oxidation test equipments and electrolyzers. Thanks to the advanced electro-oxidation technology, Boromond is aimed to reshaping the landscape of wastewater treatment industry and offer innovative, turnkey, seamless and efficient wastewater treatment solutions.

Phenols and their derivatives, such as phenol, mainly come from petrochemical enterprises
Phenols and their derivatives, including phenol itself, primarily originate from petrochemical enterprises.
Pharmaceutical intermediates, such as 17β-estradiol, are mainly from pharmaceutical and chemical enterprises
Pharmaceutical intermediates, such as 17β-estradiol, are primarily sourced from pharmaceutical and chemical enterprises.
Dyes and pigments, such as methyl orange, come mainly from printing and dyeing factories
Dyes and pigments, such as methyl orange, come mainly from printing and dyeing factories

EQ175S water treatment system is proven to be quite efficient for complete mineralization most of contaminated wastewater.                  Our electrochemical advanced oxidation water treatment system was employed to treat various array of industrial effluents.                  We supply EQ175S water treatment system as a solution to specific industries and sectors such as gas and oil industry (petrochemicals), Pharmaceuticals, special chemicals, Lithium-ion battery product and recycling.

Phenols and their derivatives, such as phenol, mainly come from petrochemical enterprises
Phenols and their derivatives, including phenol itself, primarily originate from petrochemical enterprises.
Herbicides and insecticides, such as chlorsulfuron, come mainly from pesticide manufacturers
Herbicides and insecticides, such as chlorsulfuron, come mainly from pesticide manufacturers
Surfactants, such as wash water, etc
Pharmaceutical intermediates, such as 17β-estradiol, are mainly from pharmaceutical and chemical enterprises

Robust Industrial Water Treatment System Designed To Meet Requirements Of Versatile Industries, We Build Optimized Solutions To Help Customers Reach Their Performance & Compliance Goals.

Advanced Oxidation Water Treatment System EQ175S Scale-Up & Combination

As an efficient, safe, and practical approach to remove bio-refractory organic compounds, EQ175S is designed for decentralization deployments and simplified operation as there is no chemical addition required during the treatment processes, PLC and HMI interfaces and supporting system are integrated into the system, and EQ175S requires much smaller space, it could set to function within treatment facility upon arrival.

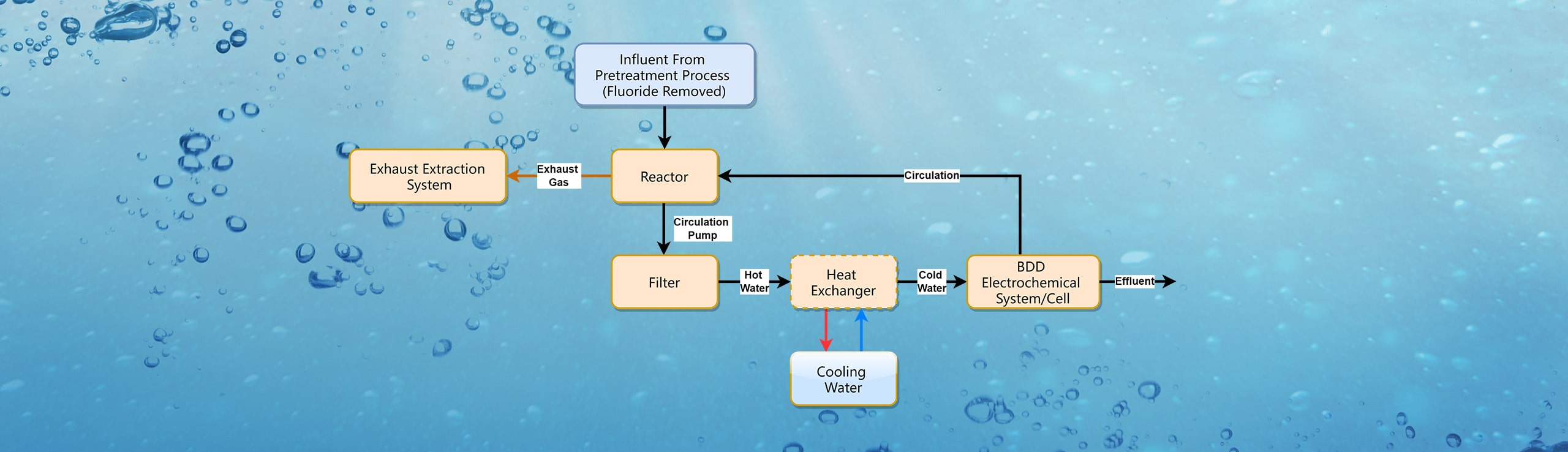

advanced electrochemical oxidation water treatment system working mechanism

Highly Scalable

Advanced oxidation water treatment system are highly scalable thanks to the flexible, future-proof modular design to operate within strict regulations to achieve water quality that your needs. You can easily build a modular electrochemical oxidation wastewater treatment plant.

Efficient & Robust

EQ175S demonstrated superb removal efficiency toward refractory organic pollutants, it’s the ideal wastewater treatment system to tackle challenges from complex industrial effluents, and it operates in conventional temperature and pressure, resistant to acid and alkali. Robust performance take EO to another level.

Versatility & Hybrid

EQ175S can treat large volumes of industrial effluents, HMI and PLCs integration ensures easy automation, Electrochemical advanced oxidation treatment could function as pre-treatment or tertiary treatment in combination with other treatment methods.

Need More Information Now?

We offer free water profile and data analysis, send your water test results to Boromond technical support team to check it over.

Analyzing your water profile through engineering appraisal.

Conducting a treatability trial to outline the pilot project.

Recommended Water Treatment Equipment Accordingly

Employing optioneering techniques to pinpoint the most suitable solution.
